The Grid

Custom layouts adapted for any warehouse space.

Lightweight construction. Heavyweight performance.

The size and shape of the AutoStore™ Grid is restricted only by the warehouse around it, ensuring optimal space usage. This is the framework holding it all together.

The customizable layout is engineered to be incredibly fast to install, and really easy to expand.

Grid-to-Grid configuration

Optimize space utilization & lower your real estate costs.

The layout can be customized to your floorspace and can be built around corners or other obstacles.

You can even connect Grids on two different floors and extend Bin reachability with the AutoStore Bin Lift™ Grid-to-Grid (G2G) configuration and get the most out of your warehouse space — keeping real estate costs down.

Compatible with both SDG and DDG tracks

Bin Lift Reach Up to 16.5m in height

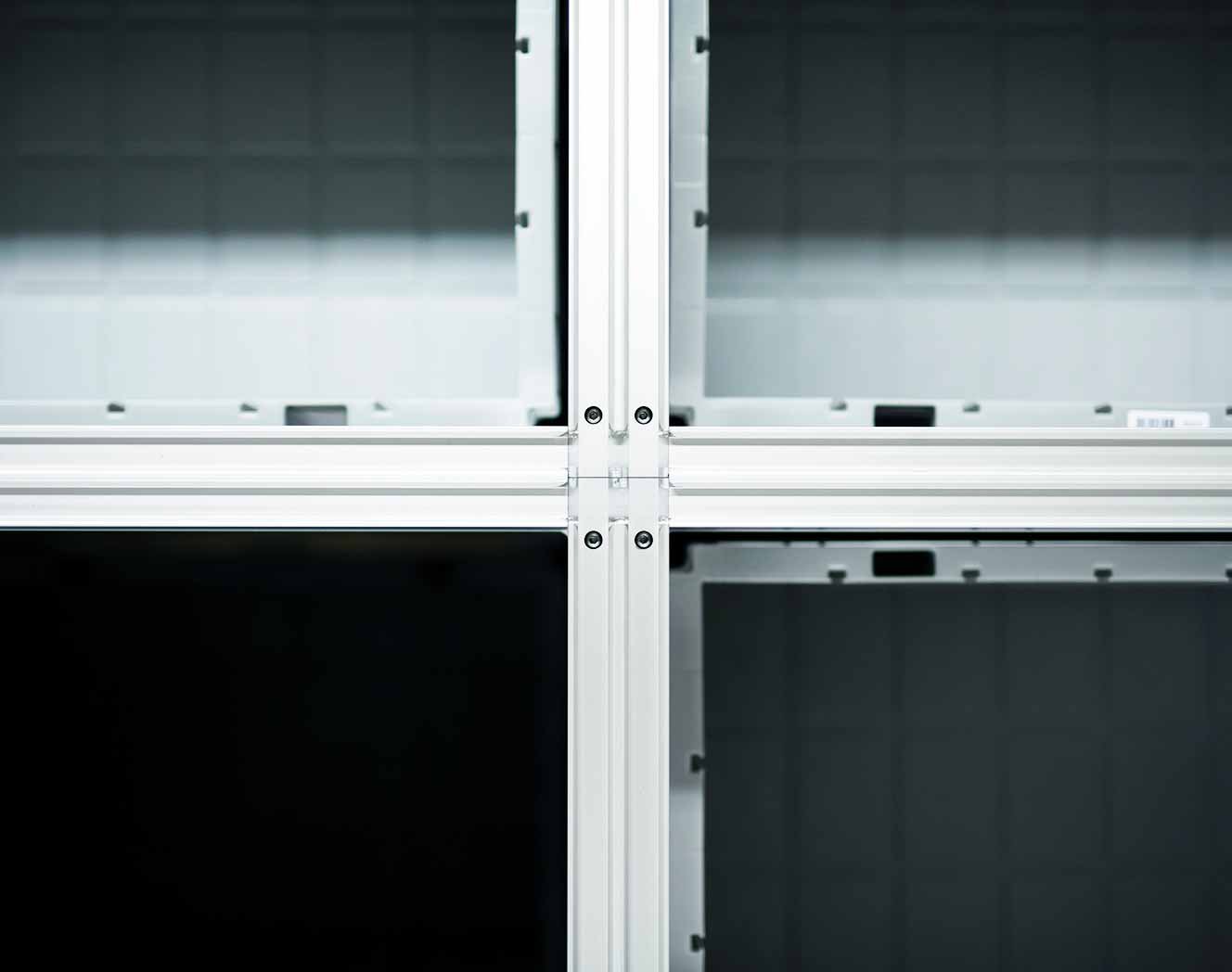

Grid_Module 5
631590da617b3d785c9328f7_Grid_article6

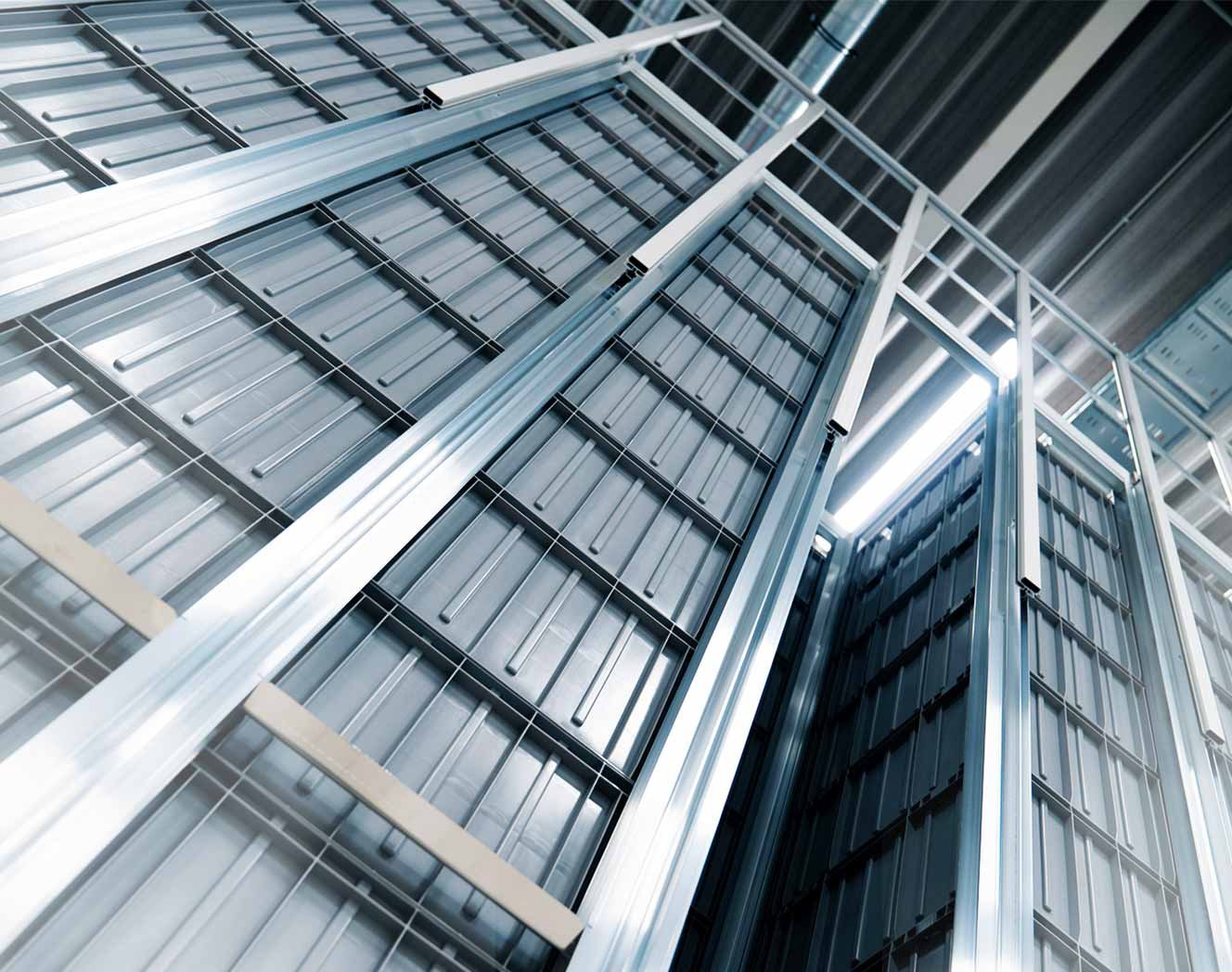

The Design

Future-proof design that scales as you grow.

The modular design of AutoStore means extending the Grid is pain-free. Like adding a room to your house, Grid extensions are isolated to an islolated area having no impact or downtime to regular operations during construction. All that's needed is a flat floor and common hand tools to put it all together.

4 Tools Hex keys, wrenches, a mallet, and drill are usually all it takes

1 Month The typical time frame for erecting an AutoStore Grid

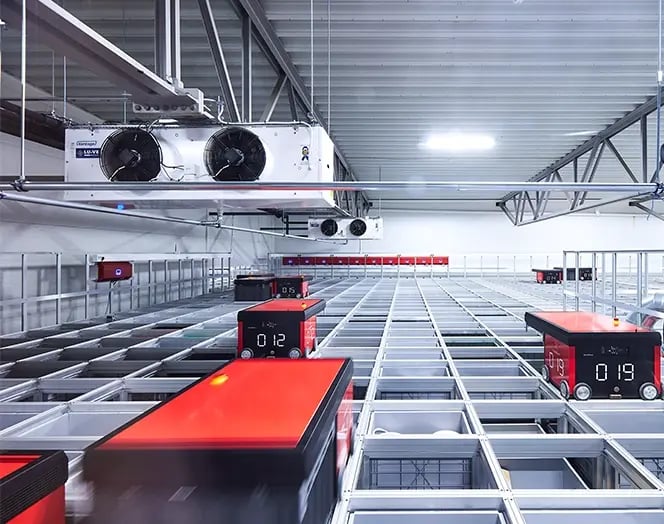

Chilled & Frozen

Advanced climate-controlled storage.

The AutoStore Multi-Temperature Solution™ is a cutting-edge storage solution for frozen and chilled environments, with a temperature range of -25°C (-13°f) to +6°C (42.8°F).

The innovative temperature zone technology enables the storage of both chilled and frozen goods in the same Grid.

One storage solution for chilled & frozen items.

Single picking workflow for chilled & frozen environments.


Grid_Module 7

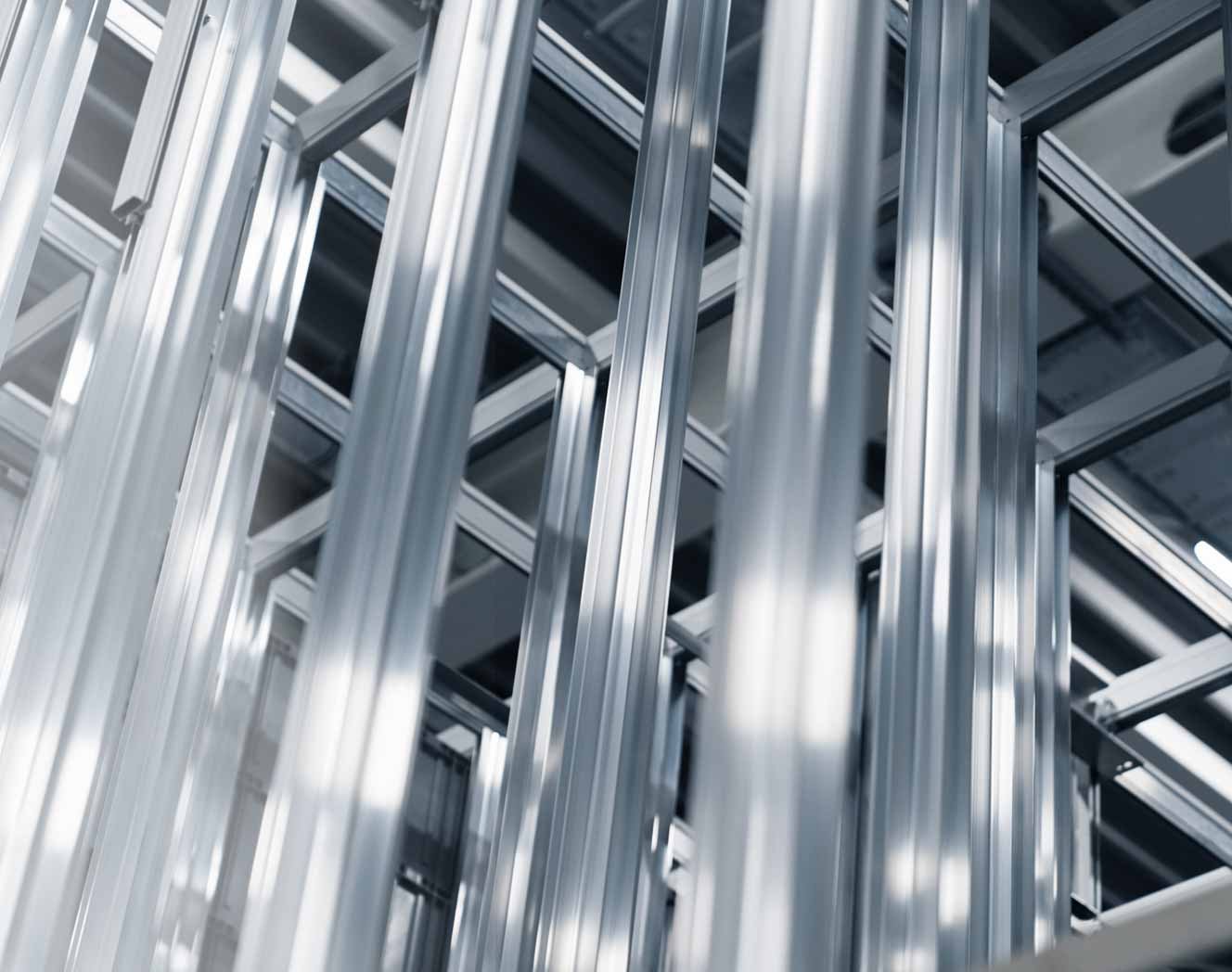

Grid_Module8

Ease of Use

Fast, agile construction for rapid deployment.

Building the AutoStore™ Grid is only a little more complex than putting together a handful of LEGO™ blocks. All AutoStore components are standardized modules that are simple to assemble and easy to connect; there are only 17 different parts.

17 Easy-connect parts. No heavy construction.

Lightweight & Sturdy This aluminum Grid will meet the demand.

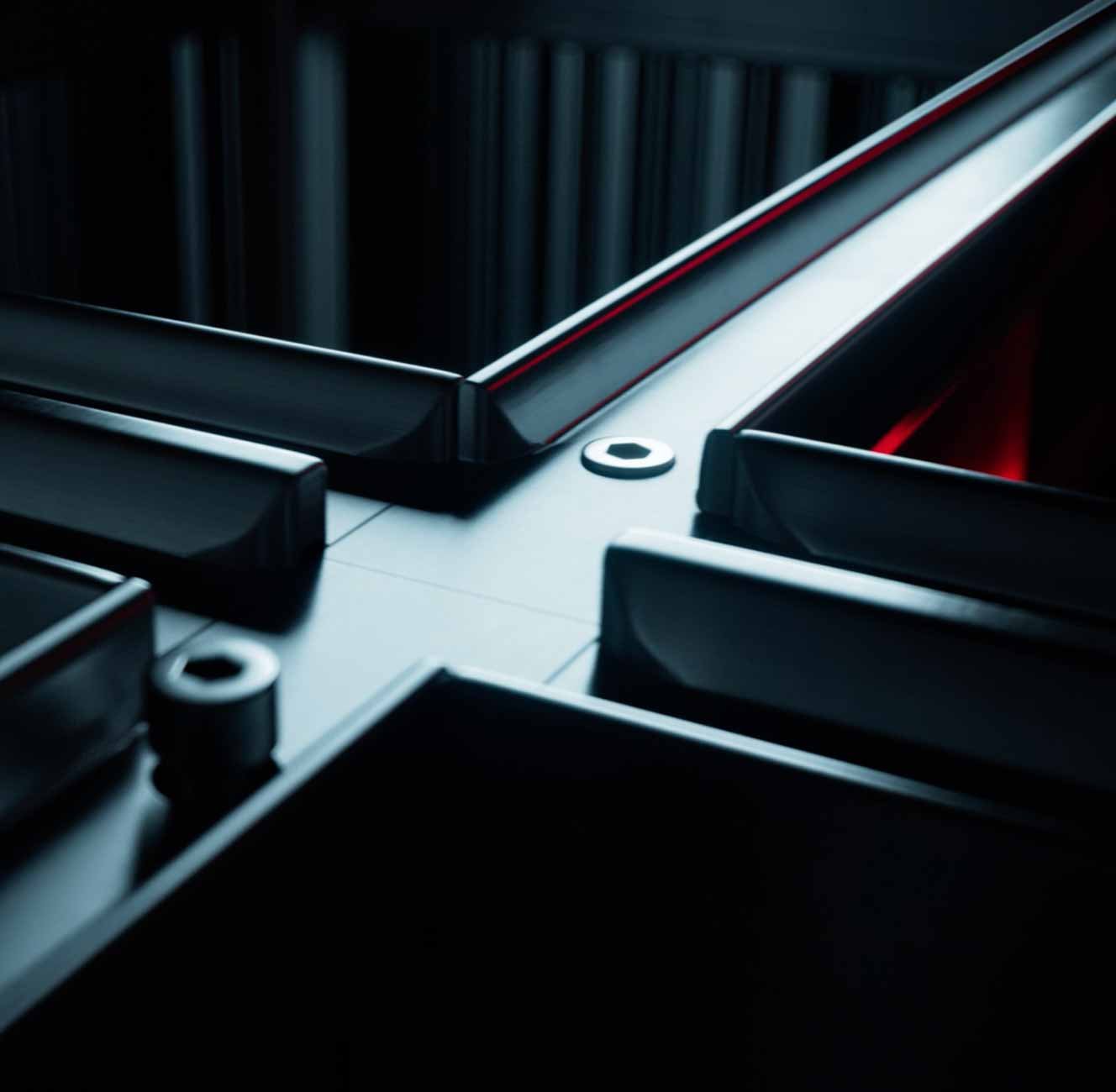

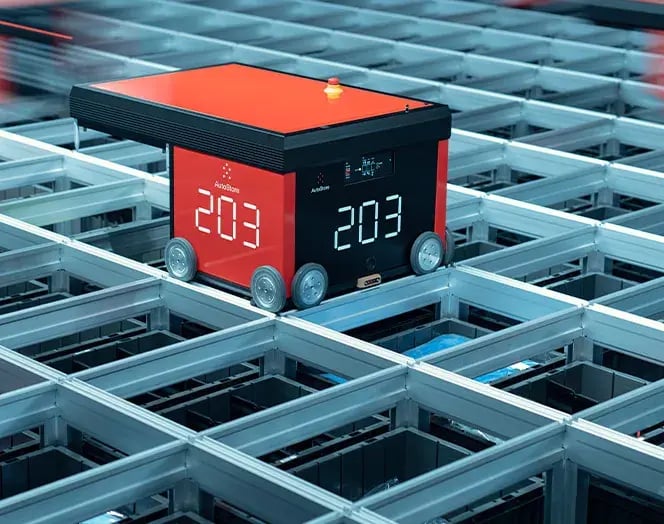

Tracks

An express railway for robots.

The Grid is topped off with tracks running in X and Y directions, allowing the robots to access any cell inside the Grid. The standard Double/Double Grid (DDG) provides a double rail in both directions, allowing robots to pass each other on all sides.

Single/Double Grid Robots can pass each other in 1 direction

Double/Double Grid Robots can pass each other in 2 directions


Industrials Module 6 Image
Grid_Module8

Flexible

Mix three Bin sizes in one Grid



Meet rising customer expectations with FlexBins, a powerful new feature in your AutoStore Grid that allows storage of all three Bin sizes in one system. Effortlessly combine small, fast-moving products with larger, bulky, or irregular items in a single, efficient solution. FlexBins eliminates the need for separate storage areas or external systems, streamlining processes from picking and packing to buffering and kitting—all within AutoStore.



Learn more about FlexBins.

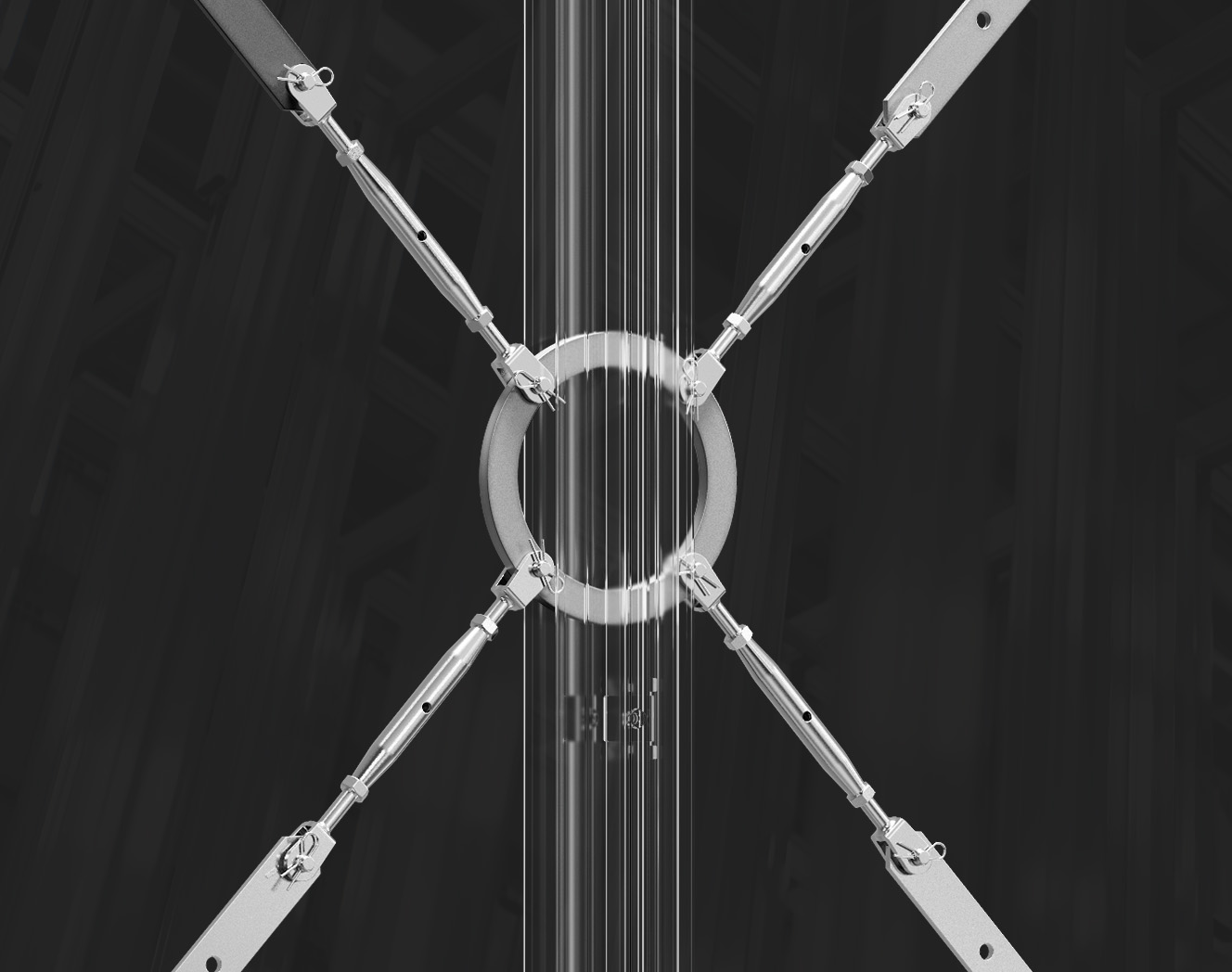

Grid Bracer

Eliminate the need for structural support.

The Grid Bracer™ is a module that can be added to the AutoStore Double/Double Grid to make the Grid self-supporting.

With the Grid Bracer there is no need for additional structural construction to the Grid around pillars or to walls. This adds flexibility and significantly reduces system installation lead time and costs.

Reduced installation time & costs No need for structural support to the Grid

Increased storage  density The Grid Bracer does not occupy any cells in the Grid


Grid_Module 10
Space_Module 6
Grid_Photo3
Grid_Photo2
Grid_Photo4

Frequently Asked Questions


All FAQs

Our innovation is at your service

Consumer behavior has changed; supply chains have not. Let's talk today to see how an AutoStore Grid can fit your warehouse and help you stand out from your competitors.
